Product Introduction

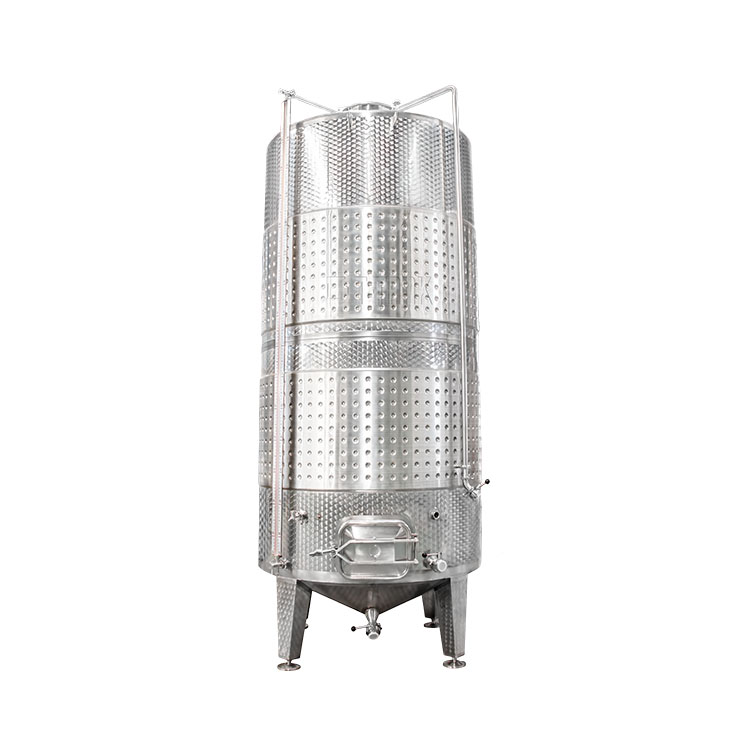

Wine Fermentation Tank allow you to ferment and carbonate your cider all in one tank. Specialized ASME-stamped high pressure vessels that are designed to suit your beverage cider fermentation process. All the versions of the tank guarantee the utmost hygiene, reliability, practicality in use, safety and durability. Available in various models and sizes to suit a given customer’s specifications, these tanks are made of AISI 304 and 316 stainless steel, paying great attention to the choice of raw materials and to the quality of their manufacture and assembly.
Features
- CIP temperature ratings
- Custom geometry to fit your process & space
- Insulation designed for your installation and process
- Fully welded stainless steel outer sheathing
- Outdoor design with security & weather protections
- Ladder and catwalk systems (optional)
- Under-jacket glycol piping (optional)
- ASME designed for whatever pressure rating you require
- Thermowells for temperature monitoring
- External sight gauges
- Insulated and fully welded stainless steel outer jacket
- Construction from 316L/304 stainless steel
- Polished material and weld finishes
- Automated temperature control
- Agitation for product mixing
- Cylindrical Shell, Cooling jakcet
- Conical top, Slope bottom
- Top round manhole, Rectangular manhole at side
- Glycol water inlet&outlet
- Pump-over system
- Filtering grid
- Thermometer
- Levelling indicator
- Breathing valve, Sample valve
- Drainage outlet
- Lifting lugsx2, Ladder rack x1
Parameters
| Model | Dimension (mm) | Height (mm) | Legs | Cooling area (m2) |
| HG-WF1 | Φ920*1500 | 2180 | 3 | 1.4 |
| HG-WF2 | Φ1270*1610 | 2600 | 3 | 2.2 |
| HG-WF3 | Φ1500*1830 | 3000 | 4 | 3 |
| HG-WF4 | Φ1600*2000 | 3250 | 4 | 4 |
| HG-WF5 | Φ1600*2440 | 3650 | 4 | 5 |
| HG-WF6 | Φ1800*2440 | 3500 | 4 | 5.5 |
| HG-WF8 | Φ1820*3050 | 4650 | 4 | 7 |
| HG-WF10 | Φ1900*3660 | 5050 | 4 | 8.5 |
| HG-WF12 | Φ1900*4270 | 5750 | 4 | 10 |
| HG-WF15 | Φ2000*4880 | 5950 | 4 | 12 |
| HG-WF20 | Φ2300*4880 | 6100 | 4 | 14 |
| HG-WF25 | Φ2600*4880 | 6050 | 4 | 15 |
| HG-WF30 | Φ2600*5500 | 6550 | 4/6 | 18 |
